Reinforced Cement Concrete Pipes
Our RCC Pipes from 150 mm to 1600 mm dia are manufactured and tested as per IS 458 : 2003
NP 3 RCC Pipe Price List and
NP 4 RCC Pipe Price List
Our main markets are Uttar Pradesh, Madhya Pradesh, Gujarat and Maharashtra.
For Enquiries Contact us

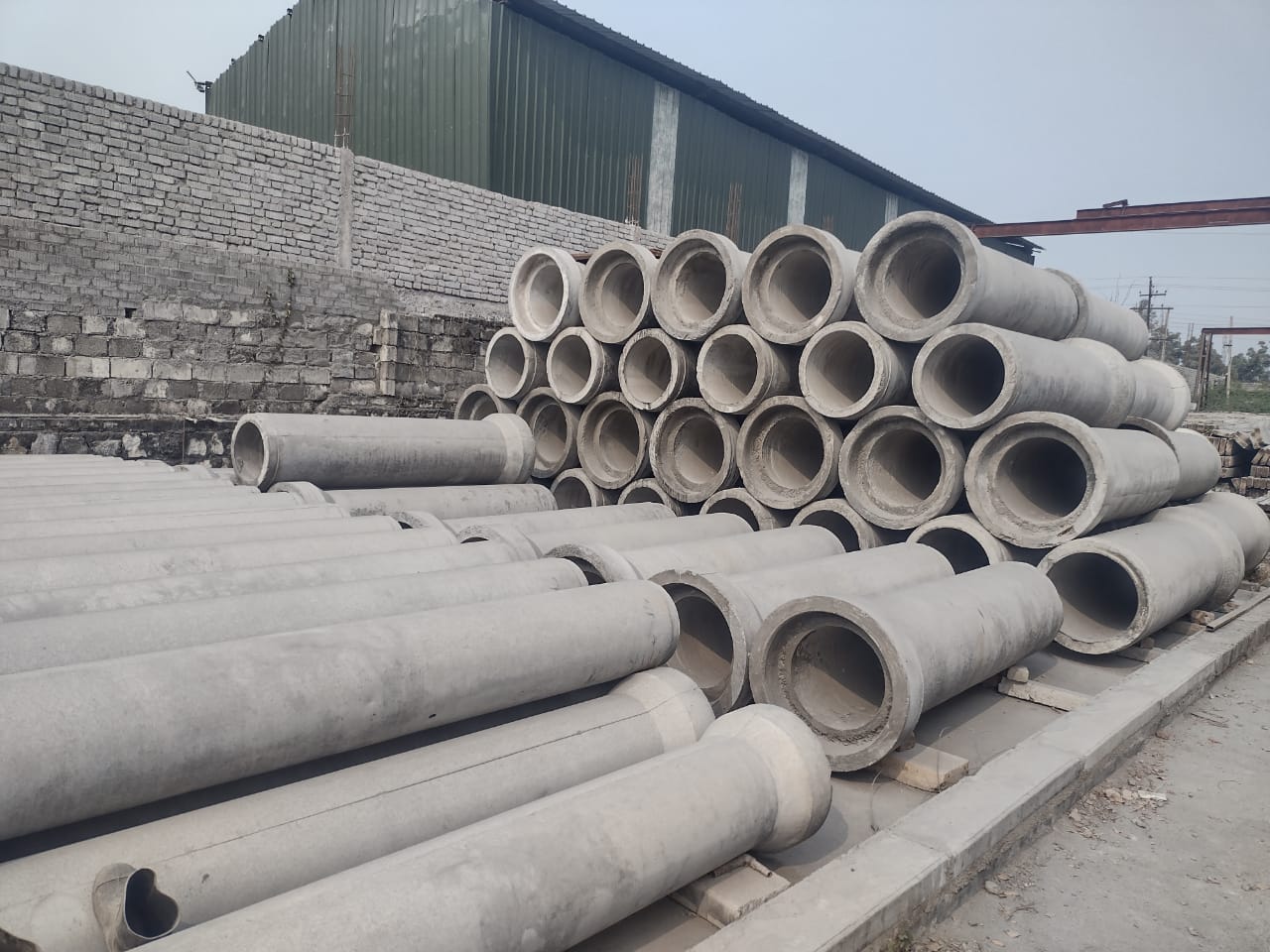

Upto 600mm dia RCC Pipes readily Available from Stock

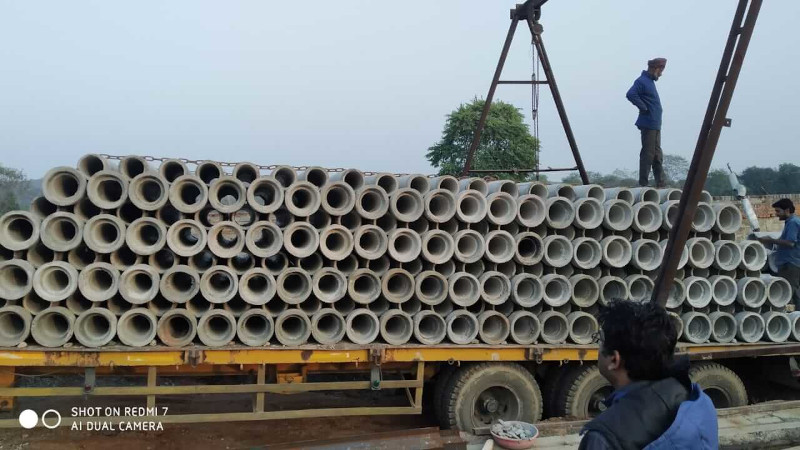

We can supply large quantities. 200mm dia NP3 RCC Pipes Dispatch

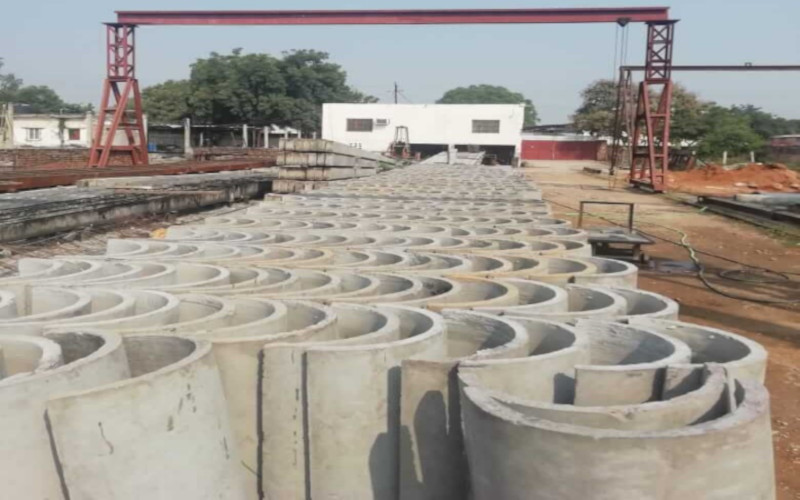

We have expertise in making half round RCC pipes

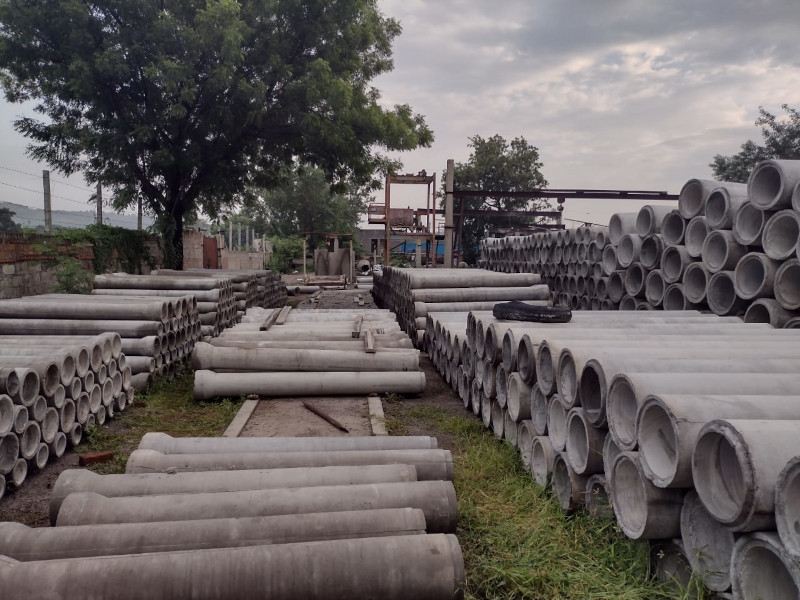

Large quantitity RCC Pipes readily Available from Stock
The RCC pipes are cast by compacting concrete together with the embedded steel reinforcement in moulds with centrifugal force by revolving the molds using a motor or an engine. The specification for the concrete and steel are adopted according to the Indian Standard specification IS 458: 1958. We manufacture NP2 , NP3 , NP4 class pipes. The sizes of pipes available are from 100 mm diameter to 2400 mm diameter. The quality of the products is assured and the selling price rates are maintained competitive.
RCC Pipe Sizes
We have the following sizes readily available
| Internal Diameter | Thickness NP 3/4 | |
|---|---|---|
| MM | Inch | MM |
| 150 | 6 | 25 |
| 200 | 8 | 30 |
| 225 | 9 | 30 |
| 250 | 10 | 30 |
| 300 | 12 | 40 |
| 350 | 14 | 75 |
| 400 | 16 | 75 |
| 450 | 18 | 75 |
| 500 | 20 | 75 |
| 600 | 24 | 85 |
| 700 | 28 | 85 |
| 800 | 32 | 95 |
| 900 | 36 | 100 |
| 1000 | 40 | 115 |
| 1100 | 44 | 115 |
| 1200 | 48 | 120 |
| 1400 | 56 | 135 |
| 1600 | 64 | 140 |
| 1800 | 72 | 150 |
| 2000 | 80 | 170 |
| 2200 | 88 | 185 |
| 2400 | 96 | 200 |
| 2600 | 104 | 215 |
Joints
Socket and Spigot, Collar Joints and Flush Joints
Applications
Testing of RCC Pipes
The quality of RCC pipes is determined by the Hydraulic pressure test and the Three edge bearing test
Hydraulic Pressure Test
This test is conducted by applying water pressure from a pump to the pipe covered on all sides to find how much pressure the pipe withstands before it leaks. The pipe quality is approved if the tested pressure is compatible with the ISI specifications.
Three Edge Bearing Test
This test is conducted by applying load on the pipe through a jack until the pipe gets cracked. The pipe passes the test if the load conditions specified as per the IS specification are satisfied.
